Z1型脹緊聯結套
|
詳細說明
|
?訂購熱線：187-3071-6577 |

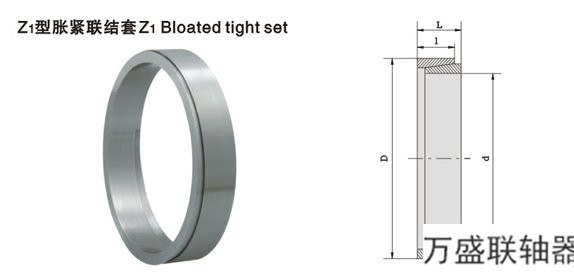

Z1型脹緊聯結套
特性 :Z1型脹緊套由內外錐環(huán)組成。結構緊湊輕巧，適用于安裝空間較小的場合。可以代替各種鍵聯結或過盈配合聯結使用。為傳遞較大載荷可采用多對脹套，單側壓緊不超過4對環(huán)，雙側壓緊可達8對環(huán)，且對中性好。
標記示例：
內徑d=130mm、外徑D=180mm的Z2型脹緊聯接套:脹套Z2-130×180
安裝參考范例
|
基本尺寸 |
當 P f =100N/mm2 時的額定負荷 |
重量 |
|||||
|
d |
D |
L |
I |
軸向力 Ft |
轉矩 Mt |
||
|
mm |
|||||||
|
20 |
25 |
6.3 |
5.3 |
4.0 |
0.004 |
0.01 |
|
|
22 |
26 |
4.5 |
0.005 |
0.01 |
|||
|
25 |
30 |
5.0 |
0.06 |
0.01 |
|||
|
28 |
32 |
5.6 |
0.08 |
0.01 |
|||
|
30 |
35 |
6.0 |
0.09 |
0.01 |
|||
|
32 |
36 |
6.4 |
0.10 |
0.01 |
|||
|
35 |
40 |
7.0 |
6.0 |
8.2 |
0.15 |
0.02 |
|
|
40 |
45 |
8.0 |
6.6 |
9.9 |
0.20 |
0.02 |
|
|
45 |
52 |
10.0 |
8.6 |
14.6 |
0.33 |
0.04 |
|
|
50 |
57 |
16.2 |
0.40 |
0.05 |
|||
|
55 |
62 |
17.8 |
0.49 |
0.05 |
|||
|
60 |
68 |
12.0 |
10.4 |
23.5 |
0.70 |
0.07 |
|
|
65 |
73 |
25.6 |
0.83 |
0.08 |
|||
|
70 |
79 |
14.0 |
12.2 |
32.0 |
1.12 |
0.11 |
|
|
75 |
84 |
34.4 |
1.29 |
0.12 |
|||
|
80 |
91 |
17.0 |
15.0 |
45.0 |
1.81 |
0.19 |
|
|
85 |
96 |
45.0 |
1.81 |
0.19 |
|||
|
90 |
101 |
51.0 |
2.29 |
0.22 |
|||
|
95 |
106 |
54.0 |
2.55 |
0.23 |
|||
|
100 |
114 |
21.0 |
18.7 |
70.0 |
3.50 |
0.38 |
|
|
105 |
119 |
73.2 |
3.82 |
0.40 |
|||
|
110 |
124 |
77.0 |
4.25 |
0.41 |
|||
|
120 |
134 |
84.0 |
5.05 |
0.45 |
|||
|
125 |
139 |
92.0 |
5.75 |
0.62 |
|||
|
130 |
148 |
28.0 |
25.3 |
124.0 |
8.05 |
0.85 |
|
|
140 |
158 |
134.0 |
9.35 |
0.91 |
|||
|
150 |
168 |
143.0 |
10.70 |
0.97 |
|||
|
160 |
178 |
152.5 |
12.20 |
1.02 |
|||
|
170 |
191 |
33.0 |
30.0 |
192.0 |
16.30 |
1.50 |
|
|
180 |
201 |
204.0 |
18.30 |
1.58 |
|||
|
190 |
211 |
214.0 |
20.40 |
1.68 |
|||
|
200 |
224 |
38.0 |
34.8 |
262.0 |
26.20 |
2.32 |
|
|
210 |
234 |
275.0 |
28.90 |
2.45 |
|||
|
220 |
244 |
288.0 |
37.70 |
2.49 |
|||
|
240 |
267 |
42.0 |
39.5 |
358.0 |
43.00 |
3.52 |
|
|
250 |
280 |
48.0 |
44.0 |
415.0 |
52.00 |
4.68 |
|
|
260 |
290 |
435.0 |
56.50 |
4.82 |
|||
|
280 |
313 |
53.0 |
49.0 |
520.0 |
72.50 |
6.27 |
|
|
300 |
333 |
555.0 |
83.00 |
6.47 |
|||
|
320 |
360 |
65.0 |
59.0 |
710.0 |
114.00 |
10.90 |
|
|
340 |
380 |
755.0 |
128.50 |
11.50 |
|||
|
360 |
400 |
800.0 |
144.00 |
12.20 |
|||
|
380 |
420 |
845.0 |
160.50 |
12.80 |
|||
|
400 |
440 |
890.0 |
178.00 |
13.50 |
|||
|
420 |
460 |
935.0 |
196.00 |
14.10 |
|||
|
450 |
490 |
998.0 |
224.50 |
15.20 |
|||
|
480 |
520 |
1070.0 |
256.00 |
16.00 |
|||
|
500 |
540 |
1110.0 |
278.00 |
16.50 |
|||
